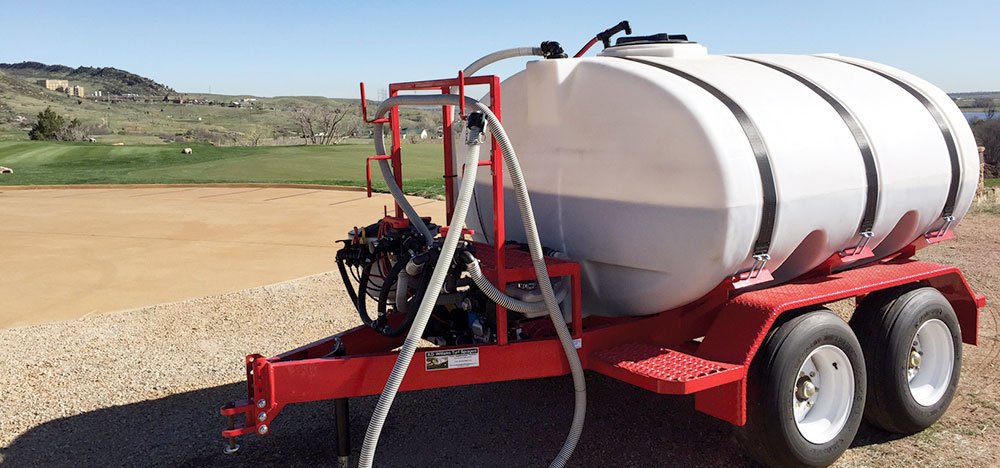

PORTABLE MIXING SYSTEMS

Our portable mixing system could be the most productive piece of equipment you can add to your spraying fleet. Station your mixing system at different locations on your course and fill your sprayer in minutes at rates up to 100 gallons per minute.

WHAT’S INCLUDED

• Polyethylene elliptical tank with sump

• 5” or 6” Steel channel frame with tank

saddle

• Single or tandem axle with or without leaf

springs

• 8 Ply high flotation turf tires

• Honda Gx200 gas engine

• Hypro direct drive poly centrifugal pump, 60 GPM agitation and transfer rate

• Agitation with 5 Hypro 3/4” Jet agitators

• 16” Tank lid with screen basket

• Correct 3/4” air gap water tank fill

• 1-1/2” Transfer hose w/ quick connect for

spray rig

• Choice of tow hitch – pin, ball or pintle

TANK SIZES

• 300, 400 and 500 gallon tanks no springs (Standard with a single axle and turf tires)

• 750 and 1000 gallon tanks with springs (Come with a double axle and turf tires)

UPGRADES & OPTIONS

8 gallon induction unit. Safe filling from ground level of liquid or dry products.

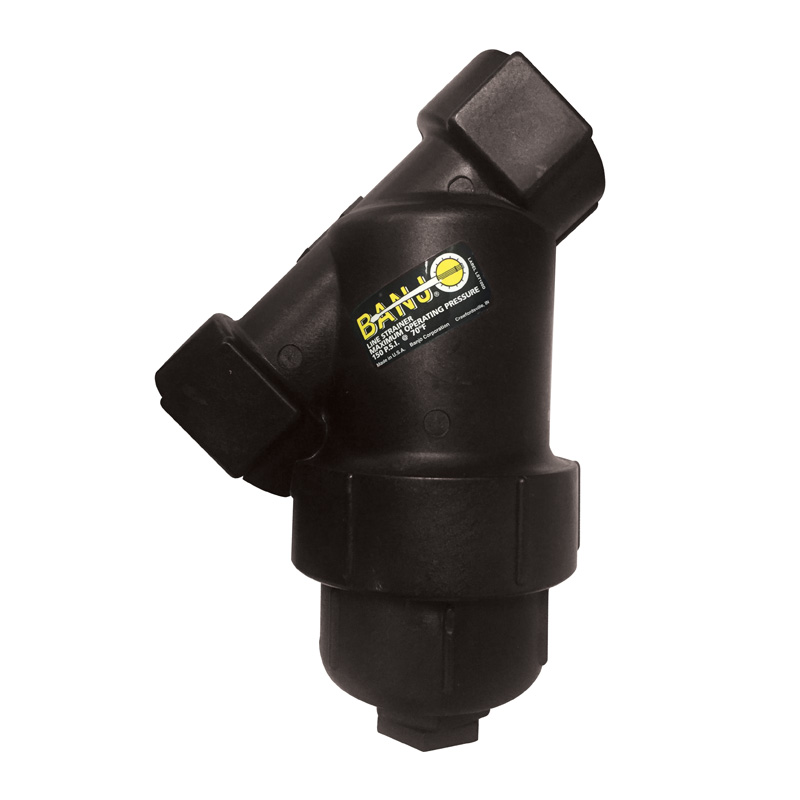

Filter system (16 mesh). Placed before agitaters to resist clogging, filter solutions before transferring.

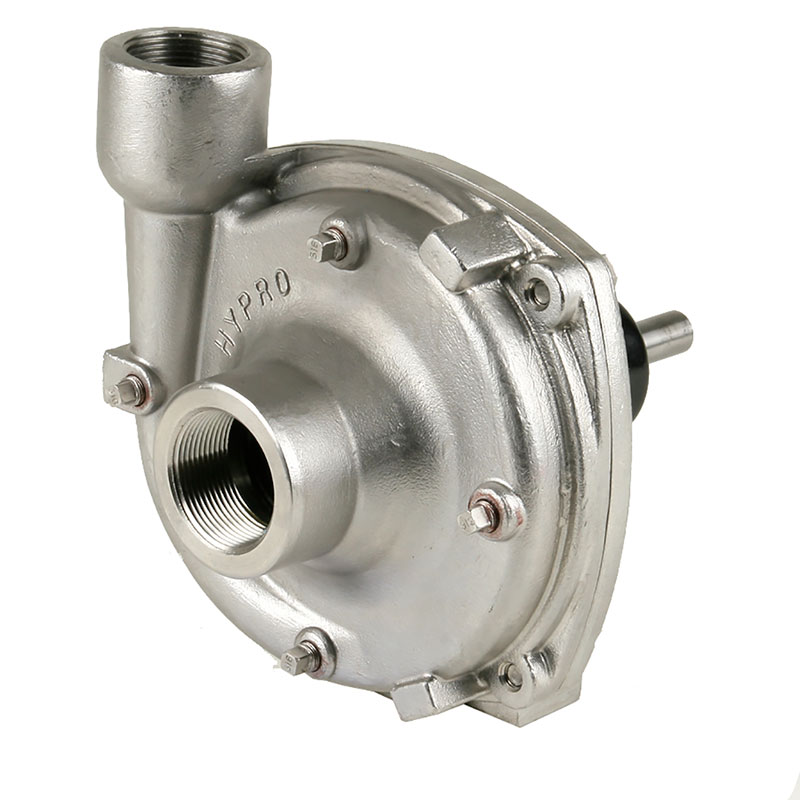

Stainless steel centrifugal pump. Increases flow and pressure for better agitation and transfer rates.

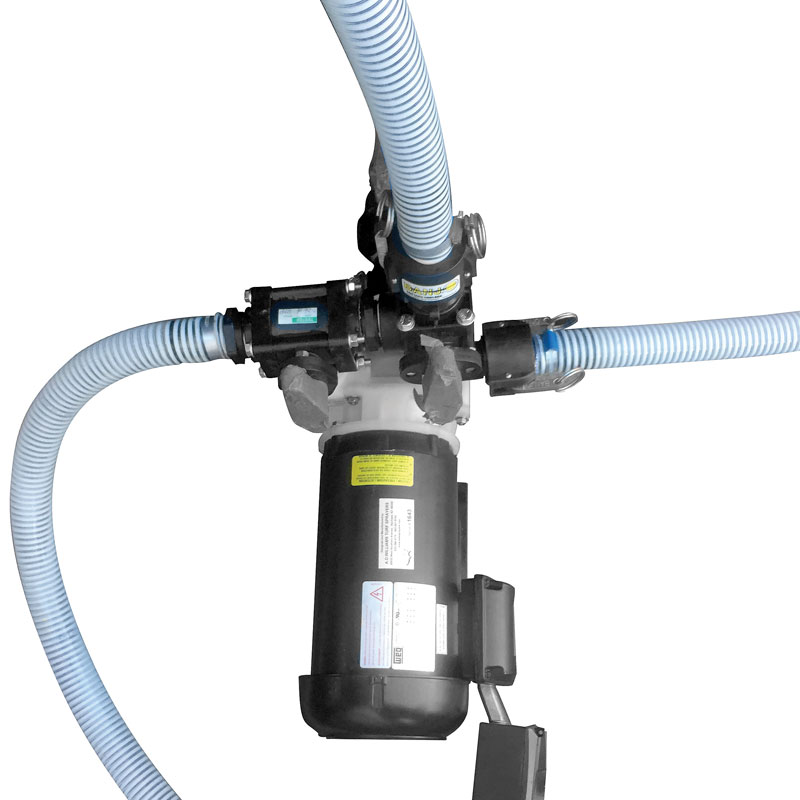

Electric pump for mixing at the shop or night before. Used with gas engine + pump.
